NC005, DMX Adapter Cable Set 3 Pin XLR to RJ45
Highlights
- DMX adapter cable
- Model: NC005
- Package quantity: 2 cables
- Connector A: 3-pin XLR male
- Connector B: RJ45 female
- Item number
- NC005
- EAN
- 6921268812881
Highlights
- DMX adapter cable
- Model: NC005
- Package quantity: 2 cables
- Connector A: 3-pin XLR male
- Connector B: RJ45 female
- Protocol: DMX512
- Cable length: 35 cm
- Cable material: PVC
- Cable weight: 50 g (manufacturer specification, unit basis not stated)
- XLR pinout: Pin 1 GND, Pin 2 DMX OUT (-), Pin 3 DMX IN (+)
- Compatible light sticks: Neewer TL60, TL90C, TL120C (manufacturer product description)

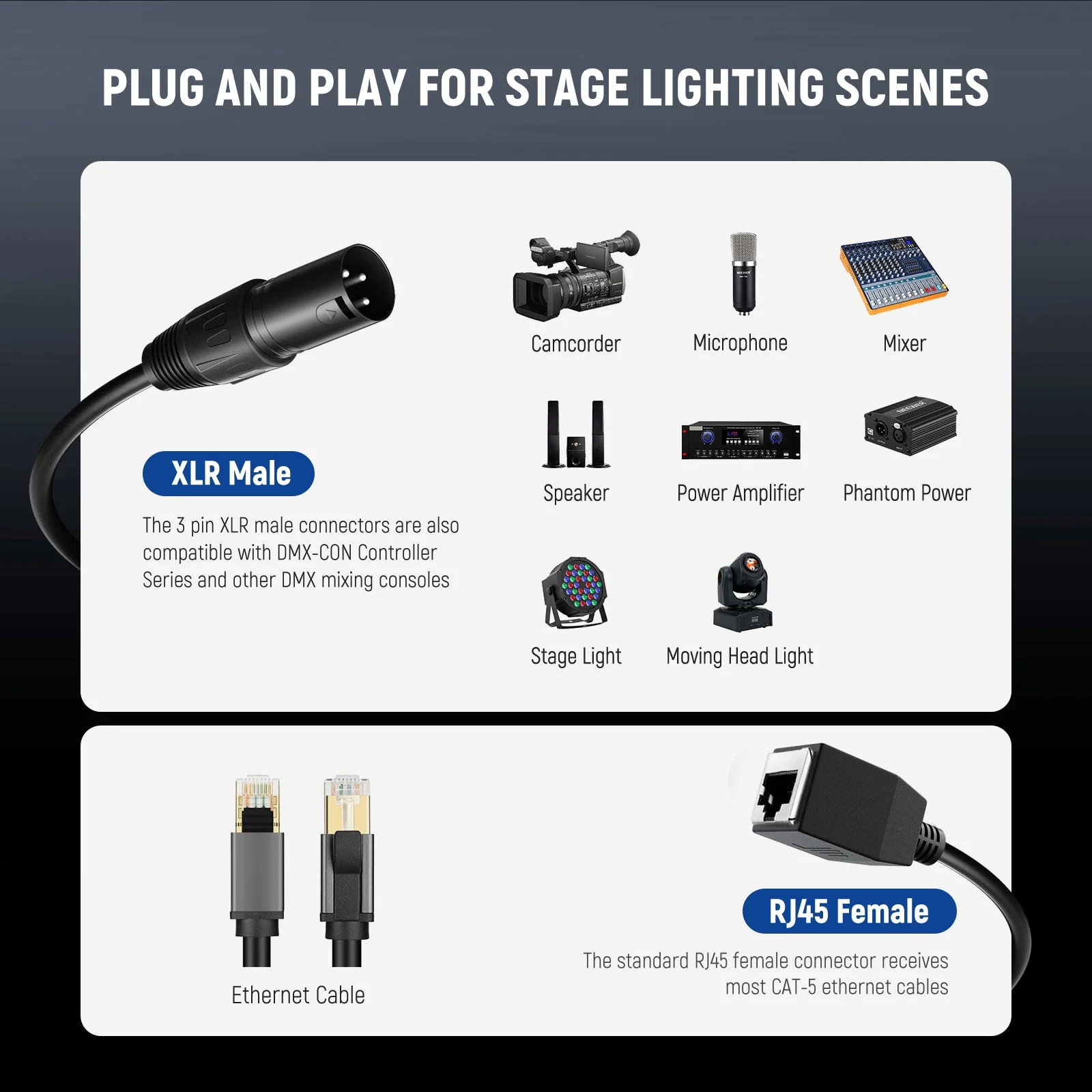

- Console compatibility: DMX-CON controller series and compatible DMX consoles
- RJ45 compatibility: Most CAT-5 Ethernet cables
- Application: Photography, vlogging, filmmaking and stage lighting
- Product variation: 3 Pin XLR

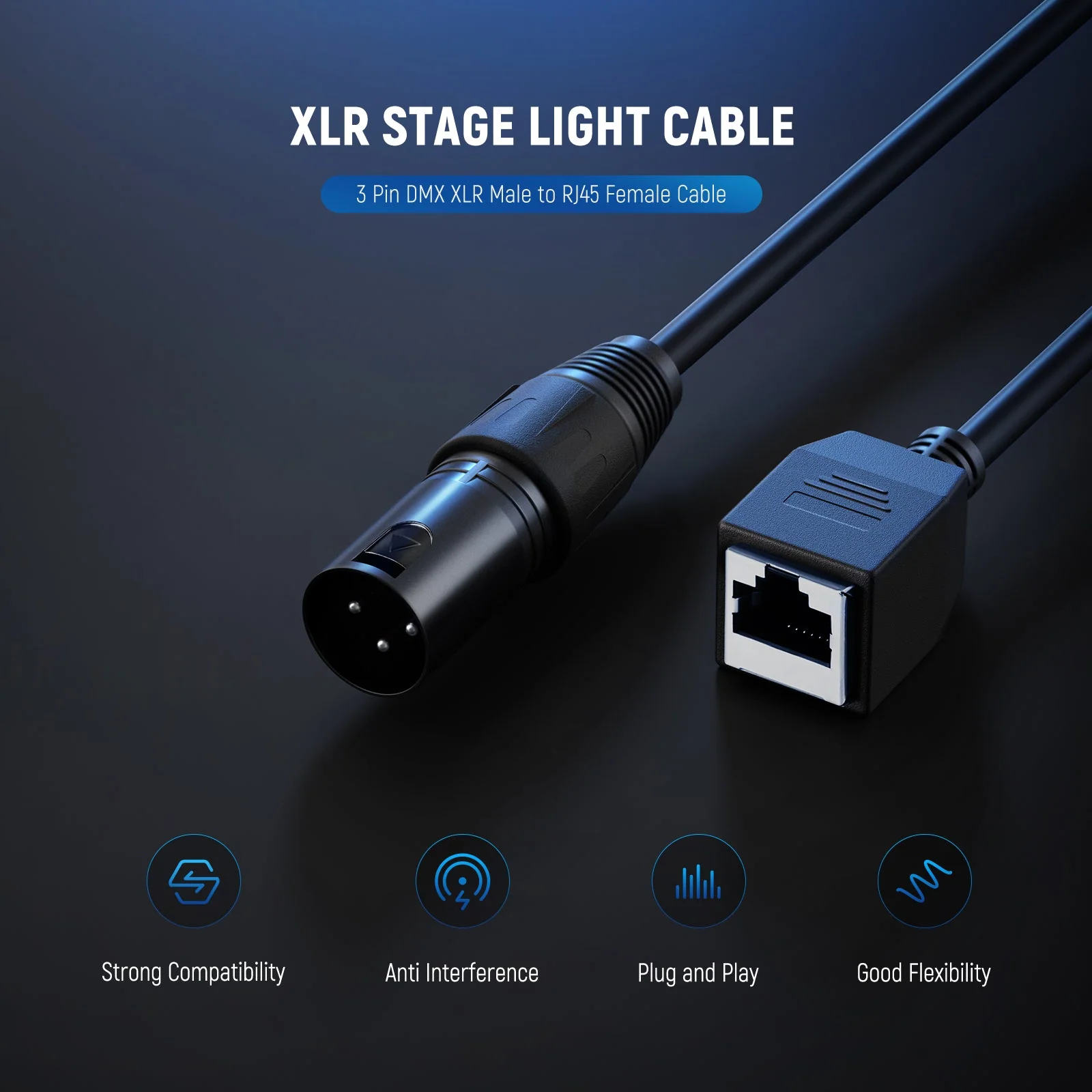

The Neewer NC005 is a two-pack of DMX adapter cables designed to connect compatible RGB light sticks to DMX512 lighting consoles. Each cable features a 3-pin XLR male connector and an RJ45 female connector, providing a practical connection option for studio, stage and video lighting setups.

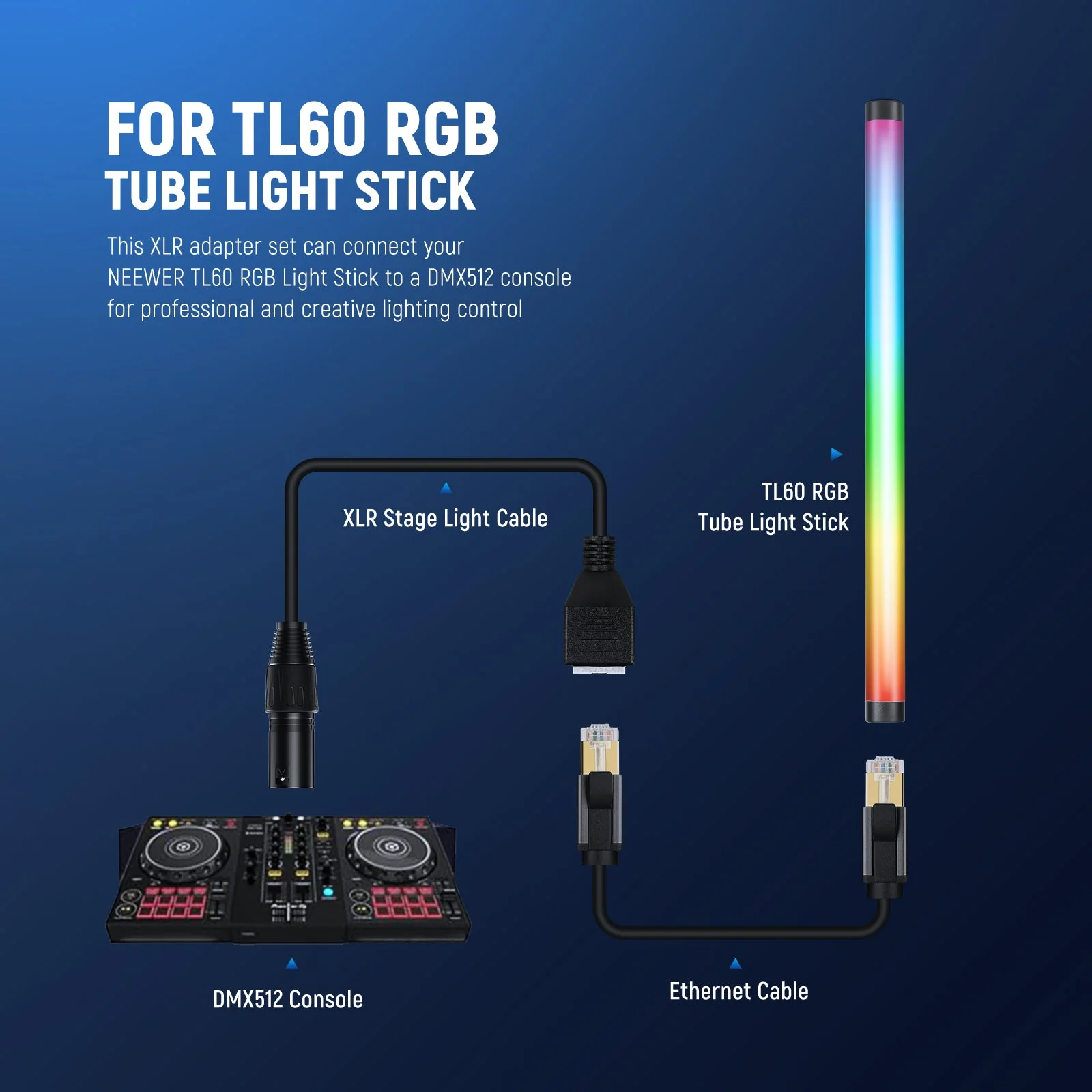

According to Neewer's product description, the adapters are designed for the TL60, TL90C and TL120C RGB tube lights. The XLR connectors are compatible with the manufacturer's DMX-CON controller series and other suitable DMX consoles, while the RJ45 sockets accept most CAT-5 Ethernet cables.

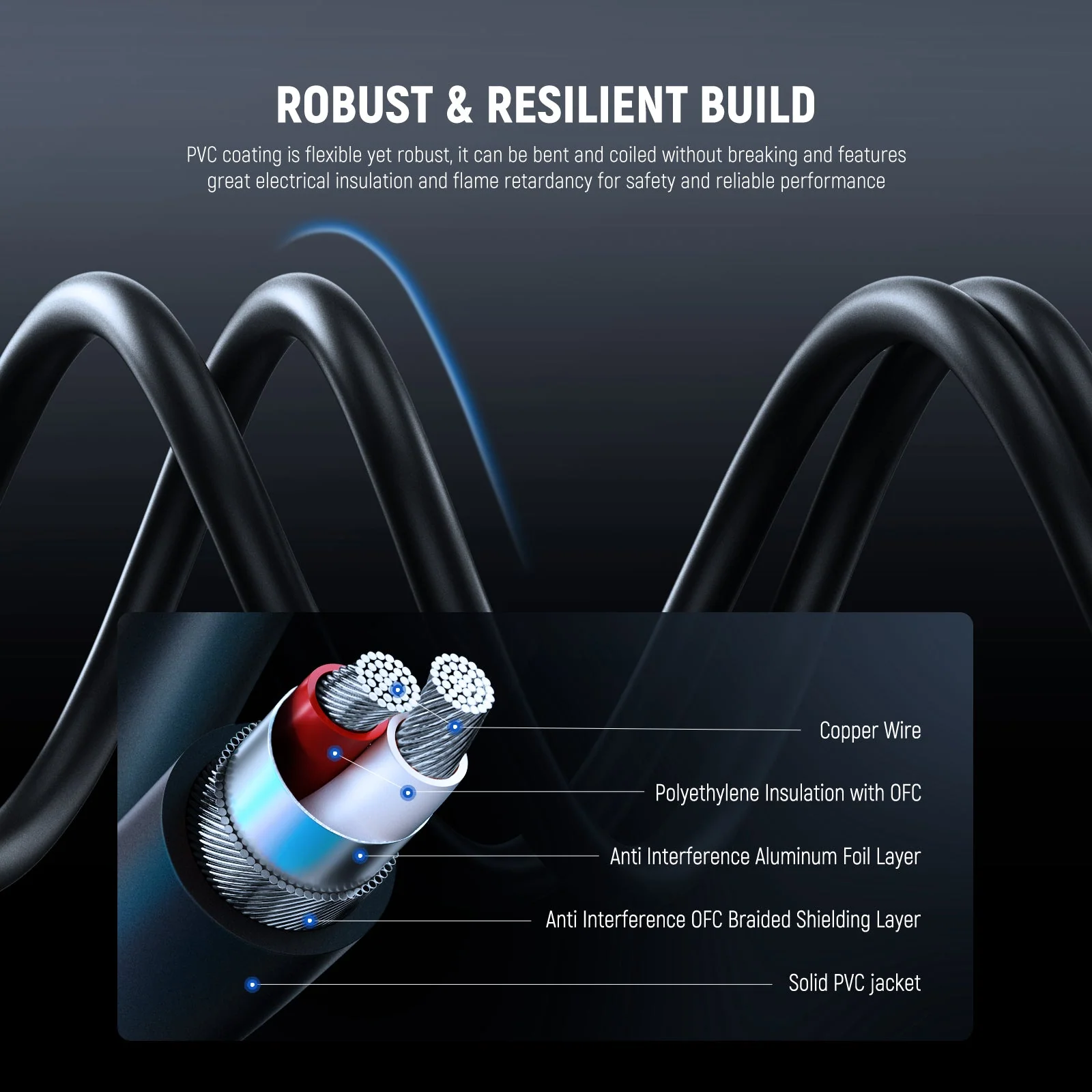

The flexible PVC coating allows the cables to be bent and coiled during setup and storage. Neewer also highlights the connector construction for resistance to rust and everyday wear, supporting consistent signal transmission.
Each adapter measures 35 cm in length. The package contains two cables, making the set suitable for connecting compatible lighting equipment or keeping an additional adapter available. The specified XLR pin assignment should be observed when connecting equipment.
In the box
- 2x 3 Pin XLR Male to RJ45 Female Cable
